BLUETTI

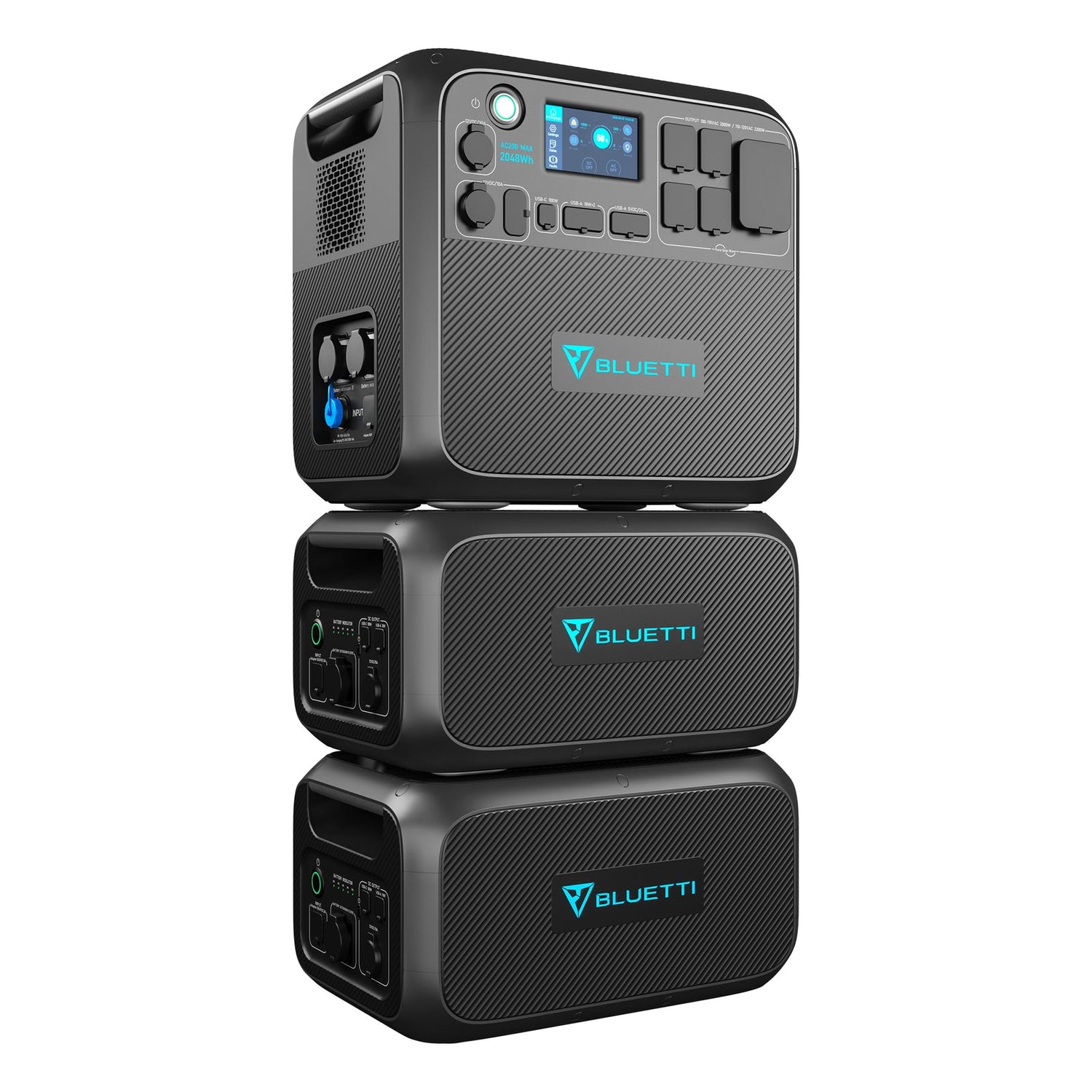

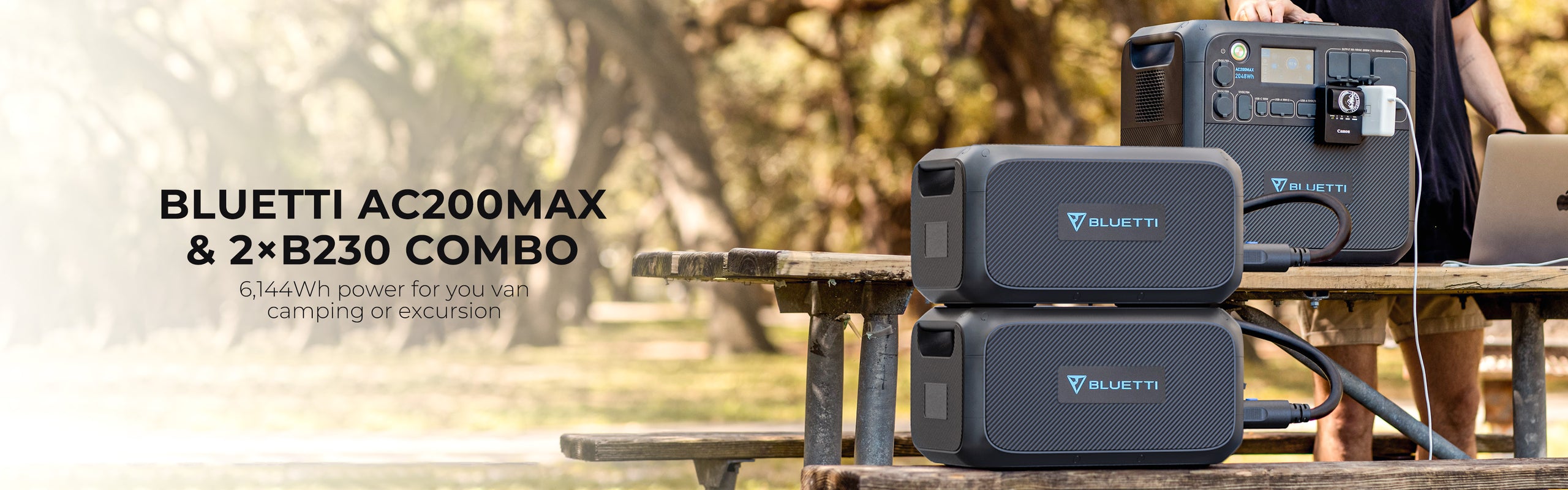

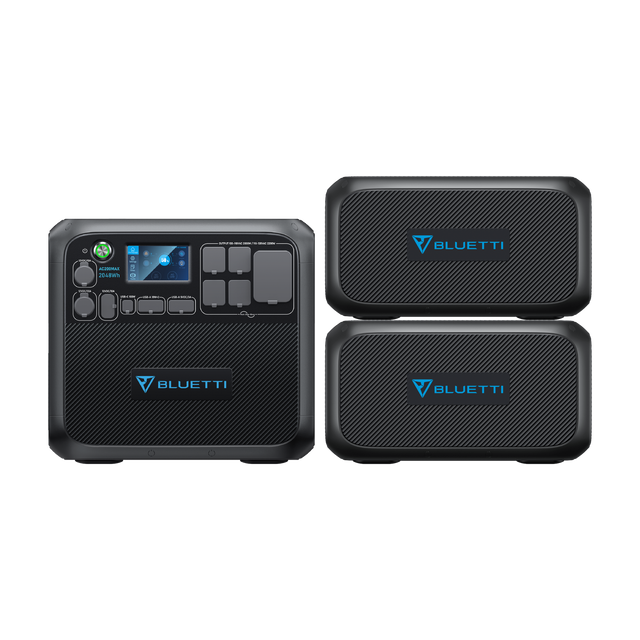

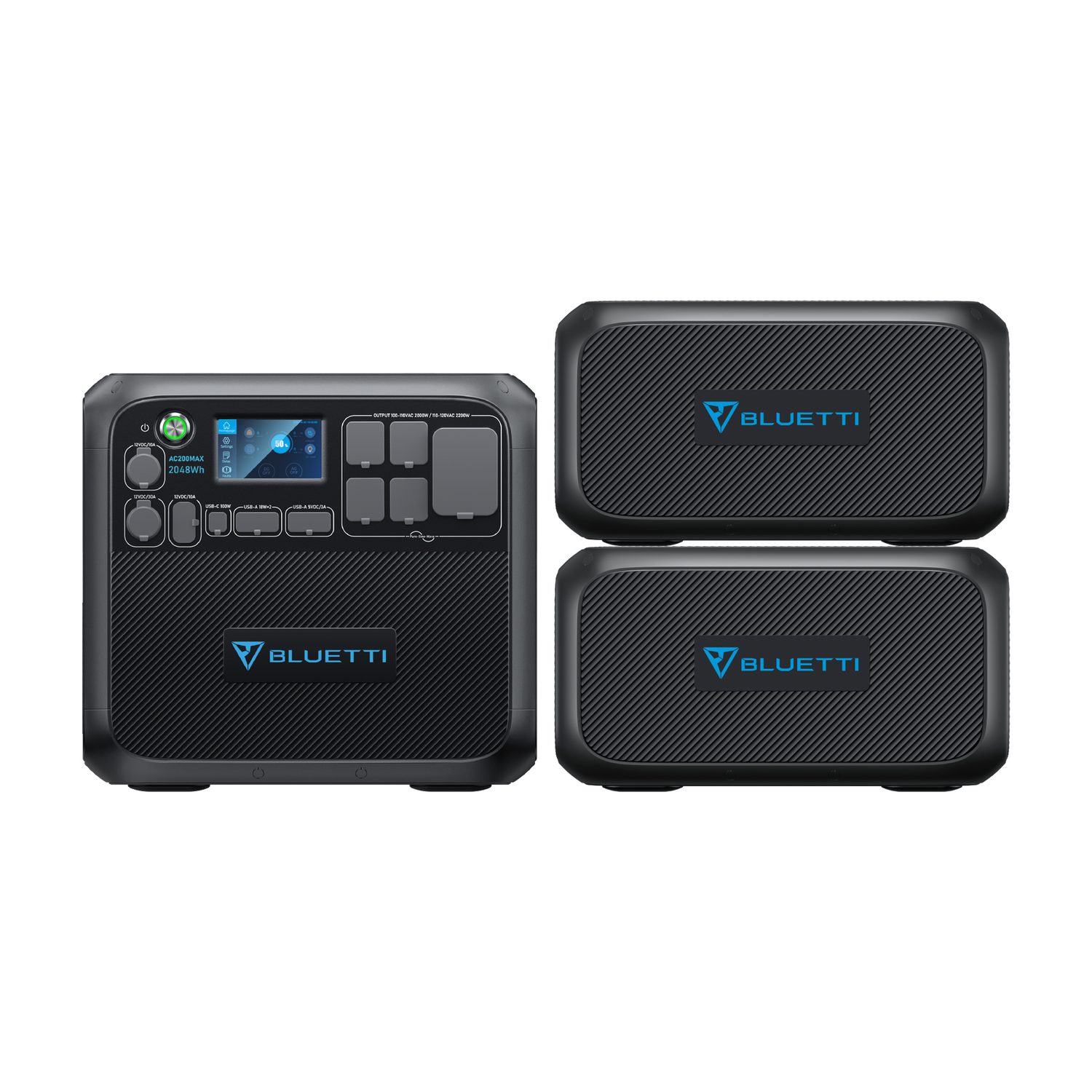

Home Battery Backup AC200MAX + 2×B230

Name: Home Battery Backup AC200MAX + 2×B230
Brand: BLUETTI
Price: 4398.0 USD
Availability: InStock

$4,398.00 ~~$5,298.00~~

Warranty information

Please check out our Warranty Policy for more information.

Delivery and Shipping

Please check out our Shipping Policy for more information.

Add a stand out message for your customers

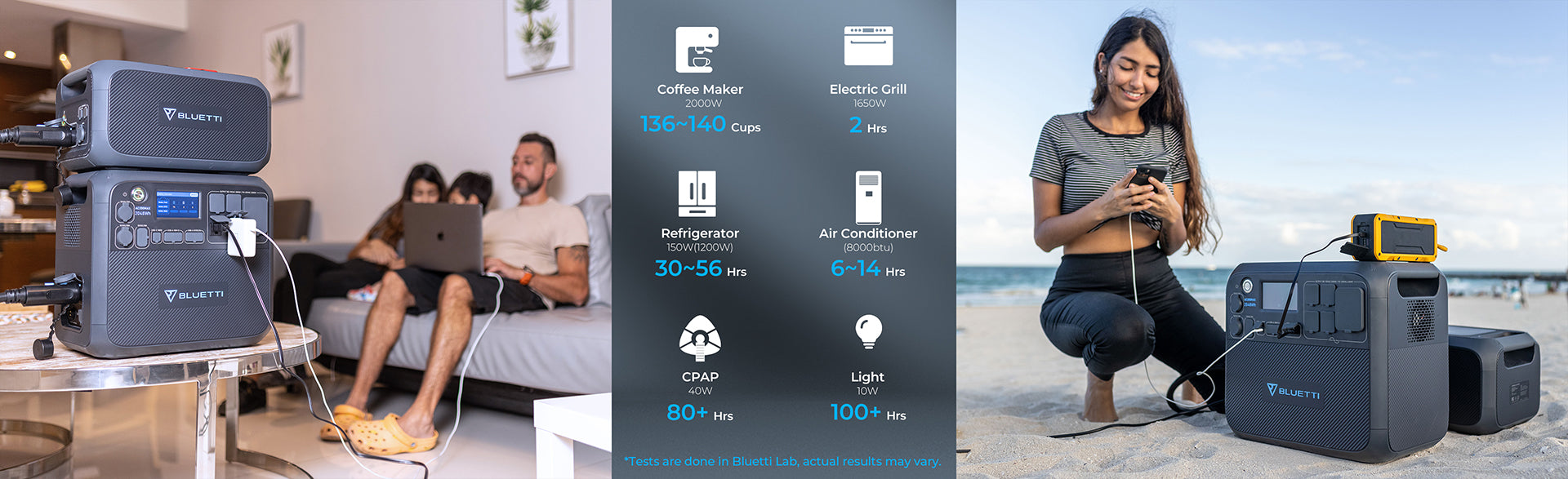

SMALL CHANGE, HUGE LEAP

The first modular, expandable Bluetti power station. Packed with an astonishing 2048Wh ultra-durable LFP cells and a 2,200W full power pure sine wave inverter, the AC200MAX can be your mobile recharge center off-the-grid or on the way.

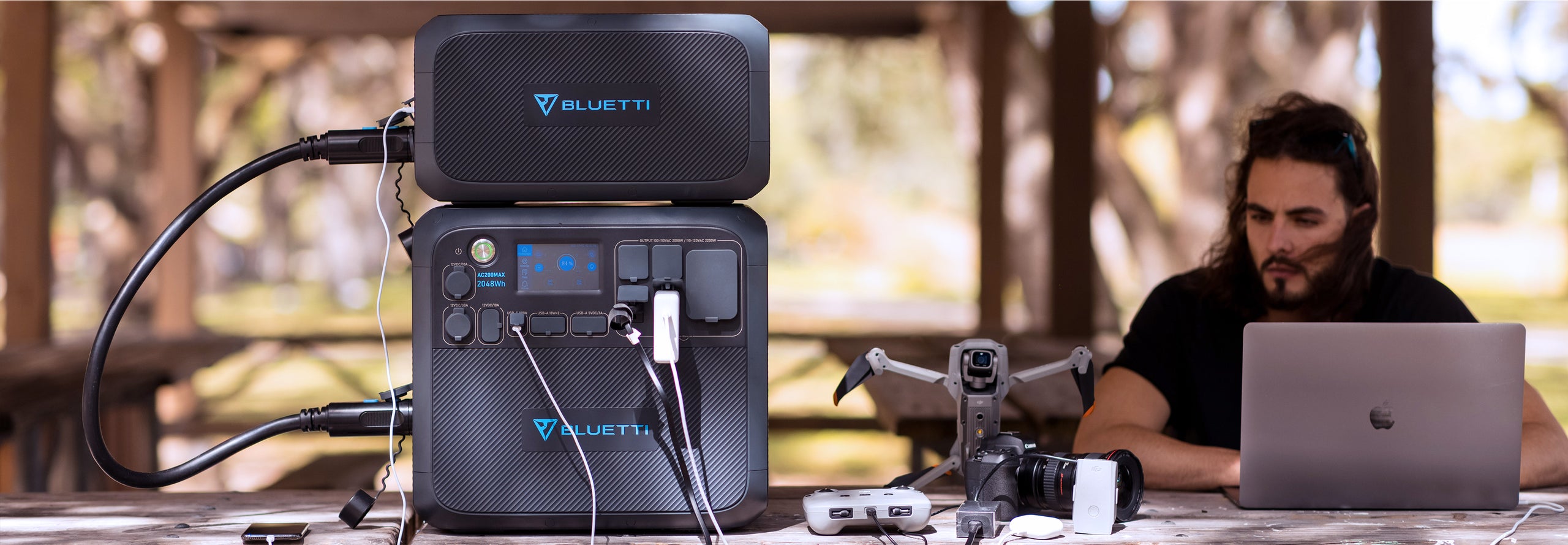

LESS TO SPEND, MORE TO LOVE

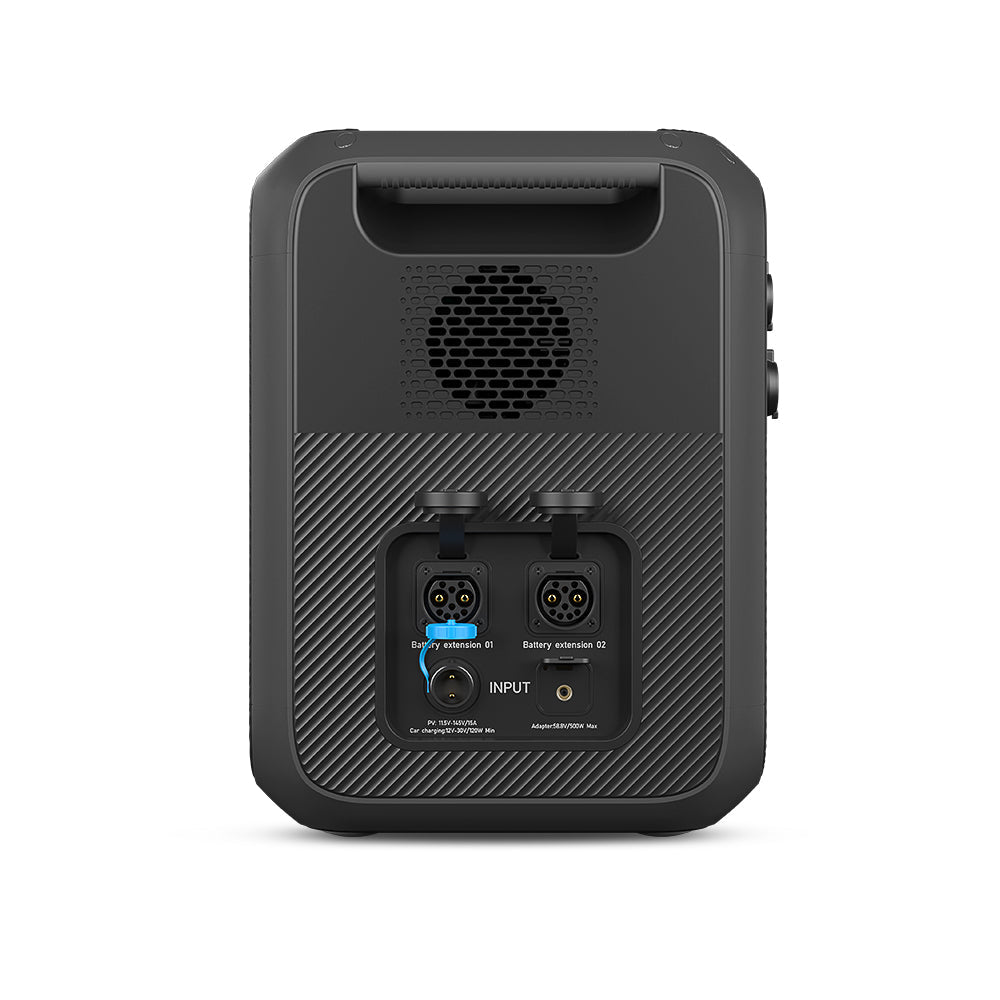

Struggling between power and flexibility? We got you covered! With two expansion ports, The AC200MAX welcomes up to two BLUETTI B230’s(2048Wh each) or B300(3072Wh each) battery modules, connecting of which can boost the total capacity to a staggering 8192Wh!

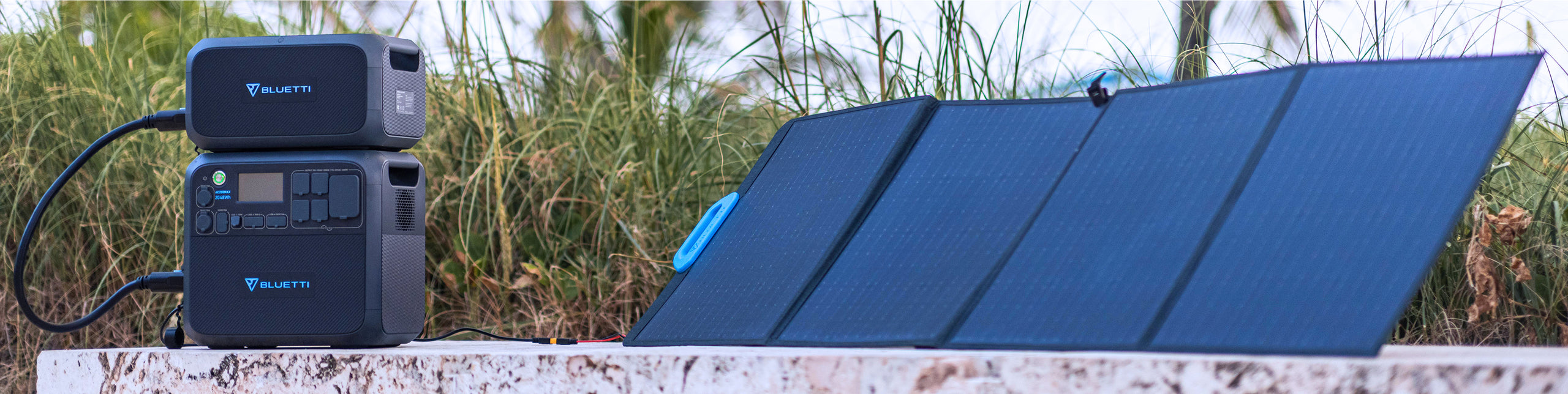

GET CHARGED IN ANYWAY YOU PREFER

The AC200MAX allows up to 900W of solar input and 500W via the adapter, you can even charge it up via your wall outlet and solar panels simultaneously, boost a stunning 1400W total charging rate which can top up your power beast in less than two hours! Further more, every Bluetti battery module has their own input port for AC adapters, you’ll get another 500W of input capability with every module added (Up to two for the AC200MAX).

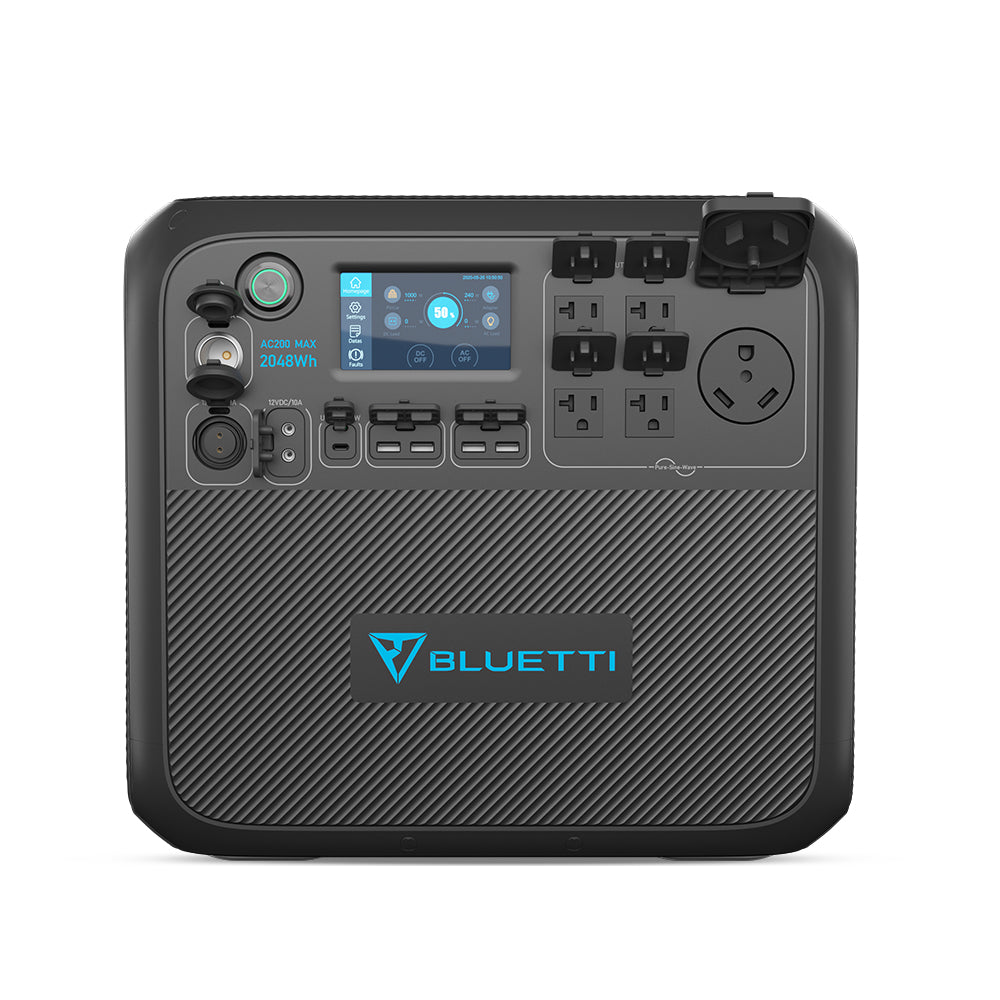

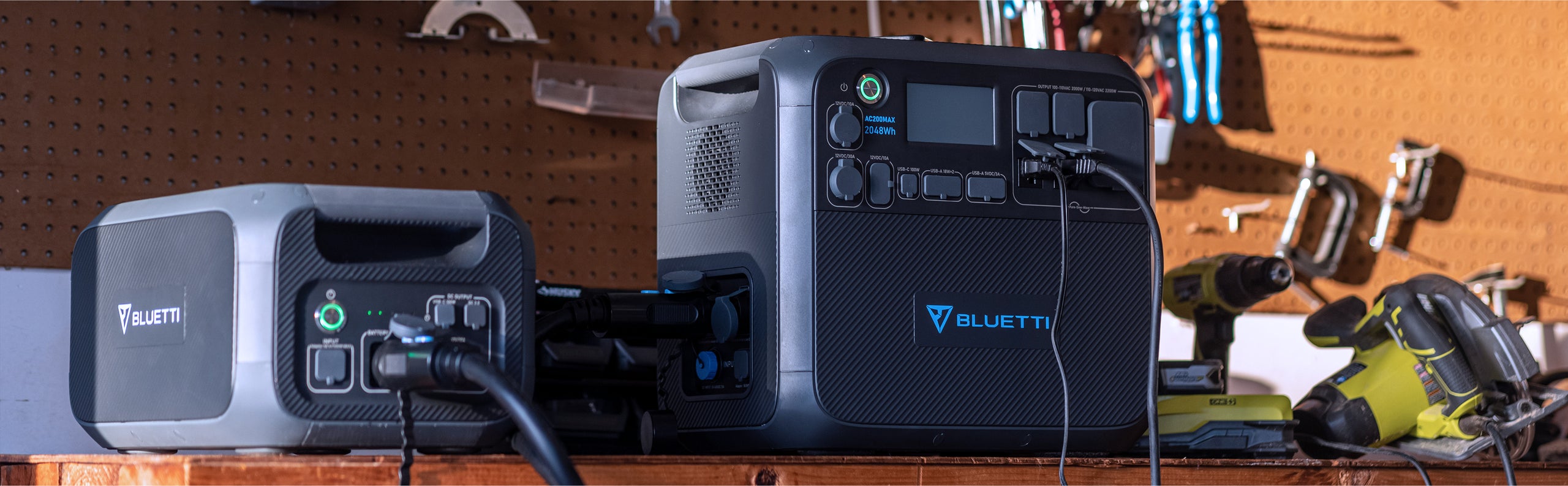

INCOMPARABLE OUTLET VERSATILITY

With AC200MAX’s 16 outlets, you get to run all your needs simultaneously without breaking a sweat. And especially for the RV enthusiasts the AC200 MAX has a specially designed built-in 30A NEMA TT-30 outlet and a 12V 30A super powerful DC outlet.

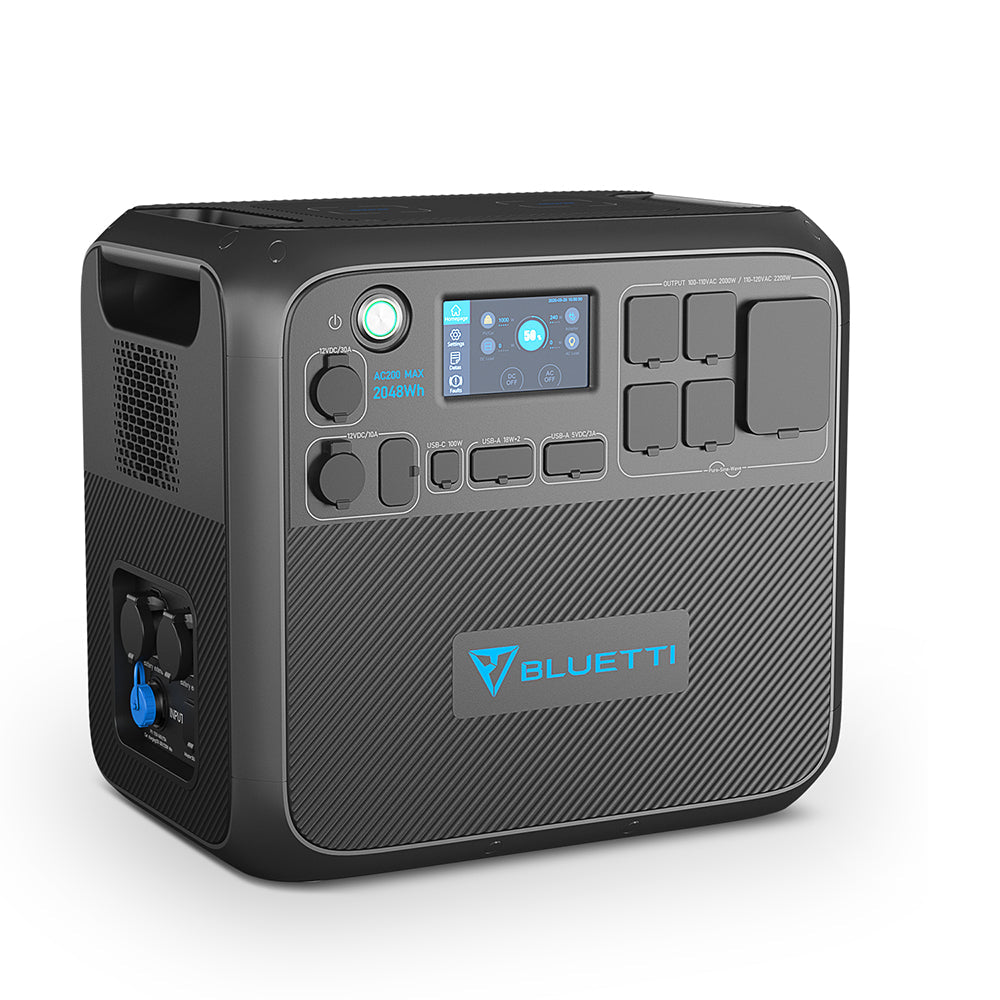

Specifications AC200MAX

BATTERY INFO

Capacity:

2,048Wh (51.2V, 40Ah)

Type:

LiFePO4 (Lithium Iron Phosphate)

Life Cycles:

3,500+ Cycles to 80% Original Capacity

Shelf-life:

Recharge to 80% Every 3-6 Months

Management System:

MPPT Controller, BMS, etc

OUTPUT

AC Outlets:

4 x 120V/20A Outlets
1 x 120V/30A NEMA TT-30
2200W In Total

Inverter Type:

Pure Sine Wave

Surge Power:

4800W

USB-C Port:

1 x 100W Max.

USB-A Port:

2 x 5V/3A USB-A
2 x 18W USB-A

12V DC Outlets:

1 x 12V/30A (RV Outlet)
1 x 12V/10A (Car Outlet)
2 x 12V/10A DC 5521 (5.5mm Outlet)
*All Regulated.

Wireless Charging Pad:

2 x 15W Max. (For Each)

INPUT

AC Adapter Input:

500W.

Solar Input:

900W Max., VOC 10-145VDC, 15A

Car Input:

12/24V from Cigarette Lighter Port

Max Input:

1,400W, with AC+Solar Input

RECHARGE TIME

AC Adapter (500W):

≈5.5~6 Hours

Solar (900W):

≈3~3.5 Hours (With prime sunshine, ideal orientation and low temperature)

12V/24V Car Outlet (100W/200W):

≈10 or 20 Hours

AC Adapter + Solar (1400W):

≈2.0~2.5 Hours (With prime sunshine, ideal orientation and low temperature)

Dual AC Adapters (1000W):

≈3~3.5 Hours (Extra adapter is REQUIRED)

GENERAL

240V Split Phase Bonding:

No. Need 240V power source.

Scalability:

Expandable w/ Up to 2 x B230 or 2 x B300

Pass-through Charging:

Yes

Weight:

61.9lbs (28.1kg)

Dimensions (LxWxD):

16.5 x 11 x 15.2in ( 42 x 28 x 38.65cm)

Operating Temperature:

-4-104℉ (-20-40℃)

Storage Temperature:

14-113℉ (-10-45℃)

Certifications:

UL2743, UKCA, TELEC, RCM, FCC ID, CE, PSE, NTC

Warranty:

48 Months (Learn more about BLUETTI warranty policy)

IN THE BOX

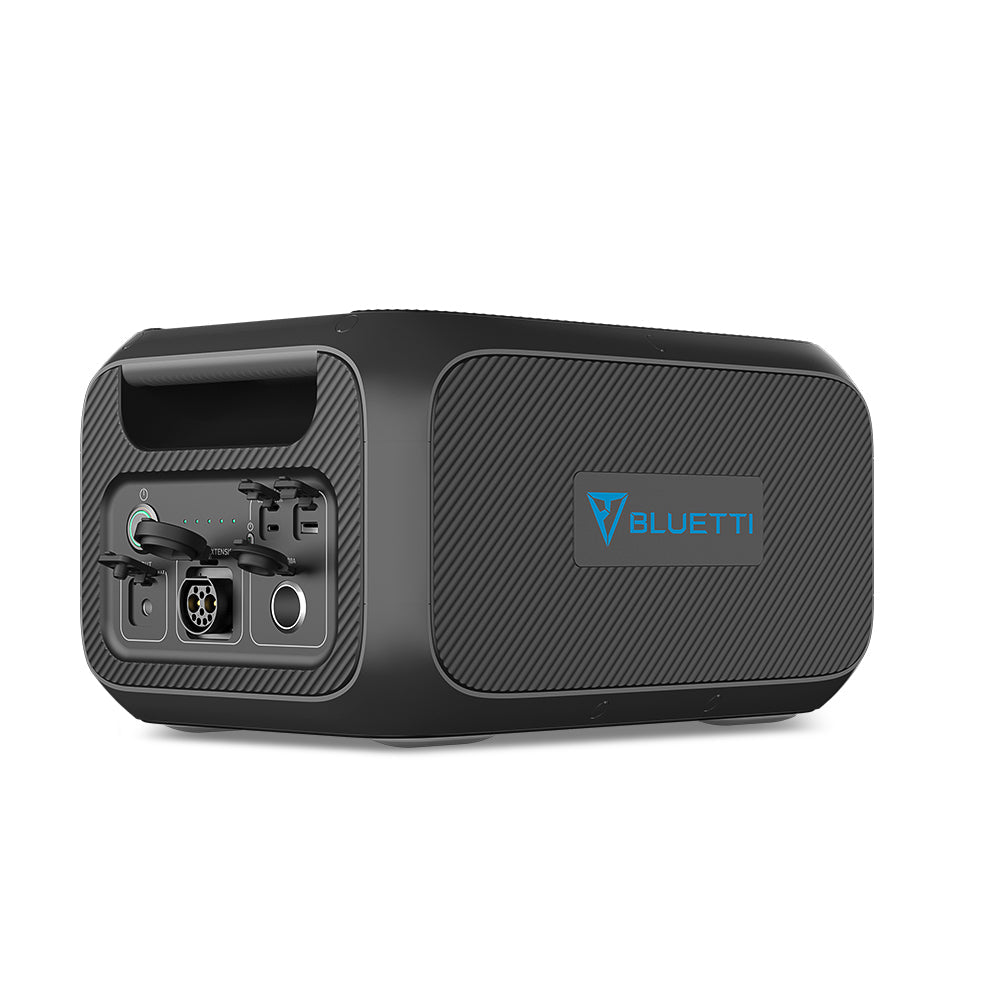

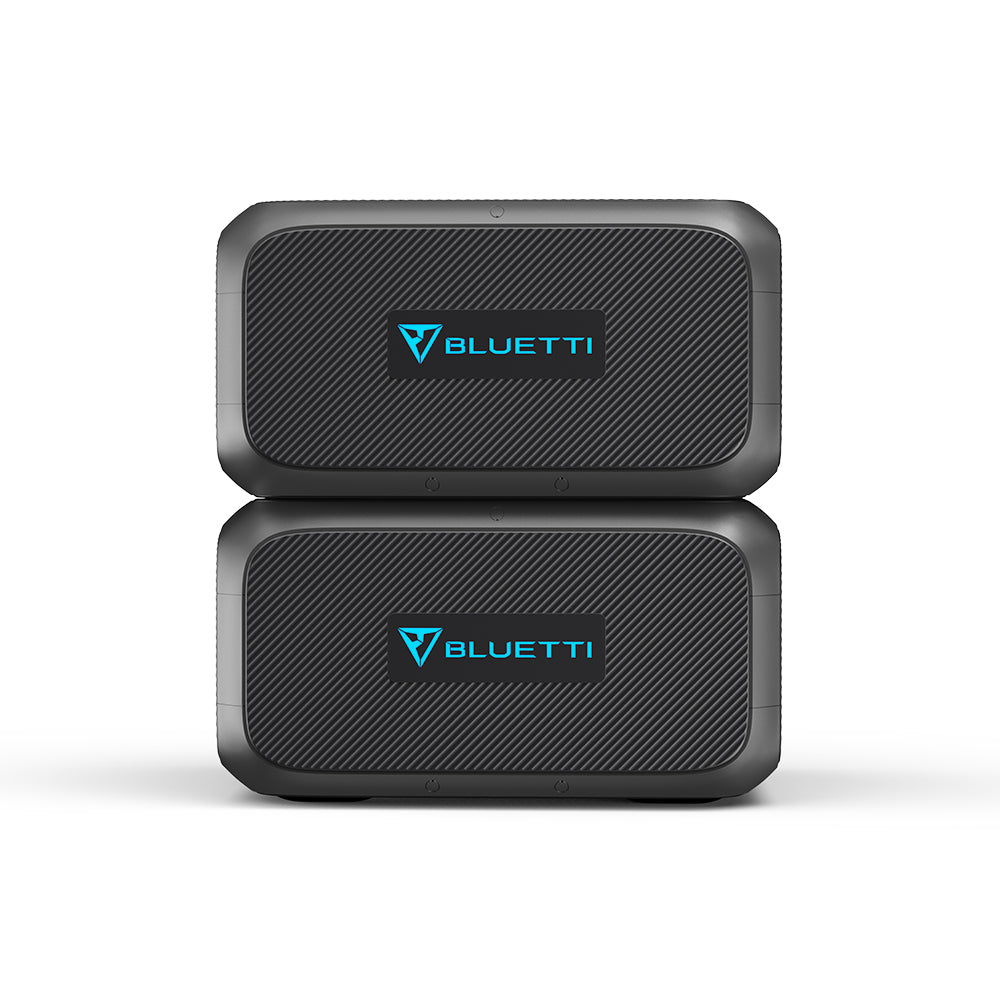

Specifications B230

BATTERY INFO

Capacity:

2,048Wh (51.2V,40Ah)

Type:

LiFePO4 (Lithium Iron Phosphate)

Life Cycles:

3,500+ Cycles to 80% Original Capacity

Shelf-life:

Recharge to 80% Every 3-6 Months

Management System:

MPPT Controller, BMS, etc.

OUTPORTS

USB-C Port:

1 x 100W Max.

USB-A Port:

1 x 18W USB-A

12V DC Outlets:

1 x 12V/10A (Car Outlet)

IN PUT

AC Adapter Input:

500W Max.

Solar Input:

500W Max., VOC 12-60VDC, 10A (Via BLUETTI D050S)

Car Input:

12/24V from Cigarette Lighter Port (Via BLUETTI D050S)

Lead-acid battery:

12/24V from Cigarette Lighter Port (Via BLUETTI D050S)

Max Input:

500W

RECHARGE TIME

AC Adapter (400W):

≈5.5~6 Hours

Solar (500W):

≈4.5~5 Hours (With prime sunshine, ideal orientation and low temperature)

12V/24V Car Outlet (100W/200W):

≈10 or 20 Hours

GENERAL

Compatibility:

AC200Max(Original Expansion), AC200P/EB150/EB240 (DC-DC Connection via D050S)

Pass-through Charging:

Yes

Weight:

48lbs (21.8kg)

Dimensions (LxWxD):

16.5 x 11 x 8.9in ( 42 x 28 x 22.75cm)

Operating Temperature:

32°F-104°F (0-40°C)

Storage Temperature:

-4-104℉(-20-40℃)

Certifications:

UL2743, UKCA, RCM, PSE, FCC, CE

Warranty:

48 Months (Learn more about BLUETTI warranty policy)

IN THE BOX
